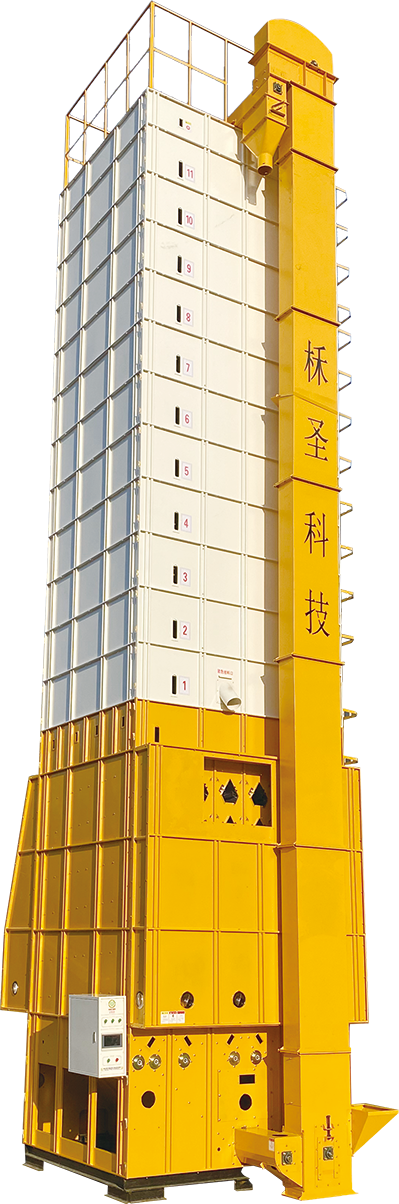

5HHS-22M型低溫谷物干燥機

5HHS-22M Type V low temperature grain dryer

混流式干燥，高效率烘干技術：

5HHS-22M型干燥機的干燥箱采用角管交叉導流，3M*2.46M*2.4M大型干燥箱加風箱結構采用負壓低溫干燥技術，多級混流烘干與緩速相結合的烘干工藝，相比傳統烘干機烘干效率大幅提升；獨特的角管混流式烘干技術保證烘干谷物在烘干時全方位無死角和谷物烘干后的水分均勻性。

智能自動化控制，低溫烘干，實時持續監控：

5HHS-22M型干燥機采用低溫烘干，機器上的溫控系統可控制烘干溫度，用戶可根據谷物品種不同自行隨意調節，設備控制系統采用PLC系統自動控制實時監控烘干溫度，風溫、糧溫實時監測和控制，谷物烘干自動化全程無憂；在線水分儀實時監測谷物含水量，烘干谷物達到用戶設定的水分值后自動停機，防止過度烘干。

獨特的一機多用排糧機構，烘干品種多、效率高：

該機具有多功能設計，可干燥水稻、油菜籽、小麥、玉米等顆粒狀谷物。干燥層采用混流風道，谷物干燥效率高。谷物從谷底輸送到谷倉的過程將使干燥的谷物自然冷卻。機器頂部設有谷物撒糧裝置，保證谷物能順暢地卸入倉內，并保證谷物在倉內撒糧更均勻，干燥后谷物水分均勻。在線水分傳感器實時監測谷物的水分含量，并在谷物干燥達到用戶之前設定的水分值后自動停止。

互聯網+工業4.0智能控制系統：

設備電箱帶有工業4.0智能控制系統(選配），該系統只要在有英特網的地方用戶就能隨時全面監控設備狀態,用戶使用智能手機就能輕松掌握設備運行狀況；互聯網＋時代的新型售后服務模式，問題精準定位，售后智能響應，給您提供快速，高效，精準的售后服務。

Mixed-flow drying, high efficiency drying technology:

The drying chamber of the model 5HHS-22M dryer has angle-pipes with cross-diversion structure. the drying cabinet, overall size 3M*2.46M*2.4M, adopts negative pressure low-temperature drying technology. The drying process improved by multi-stage mixed-flow drying technology is much more efficient than traditional dryer. The unique corner tube mixed-flow drying technology ensures quality of drying grain. There is no dead angle in all directions and moisture uniformity of grain after drying.

Intelligent control, low temperature drying, real-time monitoring mechanism:

The model 5HHS-22M dryer adopts low temperature drying technology. The temperature control system on the machine can control the drying temperature. Users can adjust the drying temperature.freely according to the variety of cereals. The equipment control system adopts PLC system to automatically control the drying temperature in real time. There are many sensors in the controlling cabinet, including the air temperature and grain temperature sensor, which ensure the whole drying process are tree from worry. The moisture senser continuously and automatically monitor the moisture content of grain in real time, stops automatically after drying the grain reaches the moisture value previously set by the user, it also can prevent drying grain from the excessive drying.

Unique one-machine multi-purpose grain discharging mechanism：

This machine has multi-function design, can dry rice, rapeseed, wheat, corn and other granular grains. The drying layer adopts mixed flow air duct, and the grain drying efficiency is high. The process of transporting grain from the valley floor to the barn will allow the dry grain to cool naturally. The top of the machine is equipped with grain sprinkling device to ensure that the grain can be unloaded smoothly into the warehouse, and ensure that the grain is evenly distributed in the warehouse, and the grain moisture is even after drying. The online moisture sensor monitors the moisture content of the grain in real time and automatically stops when the grain has dried to a preset moisture value set by the user.

Exclusive Internet+Industry 4.0 Intelligent Control System:

The equipment cabinet has an exclusive industrial 4.0 version intelligent control system, which can enable users to monitor the state of the equipment by a cell phone at any time as long as there are any place where can receive the Internet signal. Users can easily know the running status of the dryer by using the APP downloaded on smart phones, computers or iPads. The new after-sales service model with the Internet can position the fault precisely. Moreover, the intelligent response system in new area can provide you with rapid, efficient and accurate after-sales service.

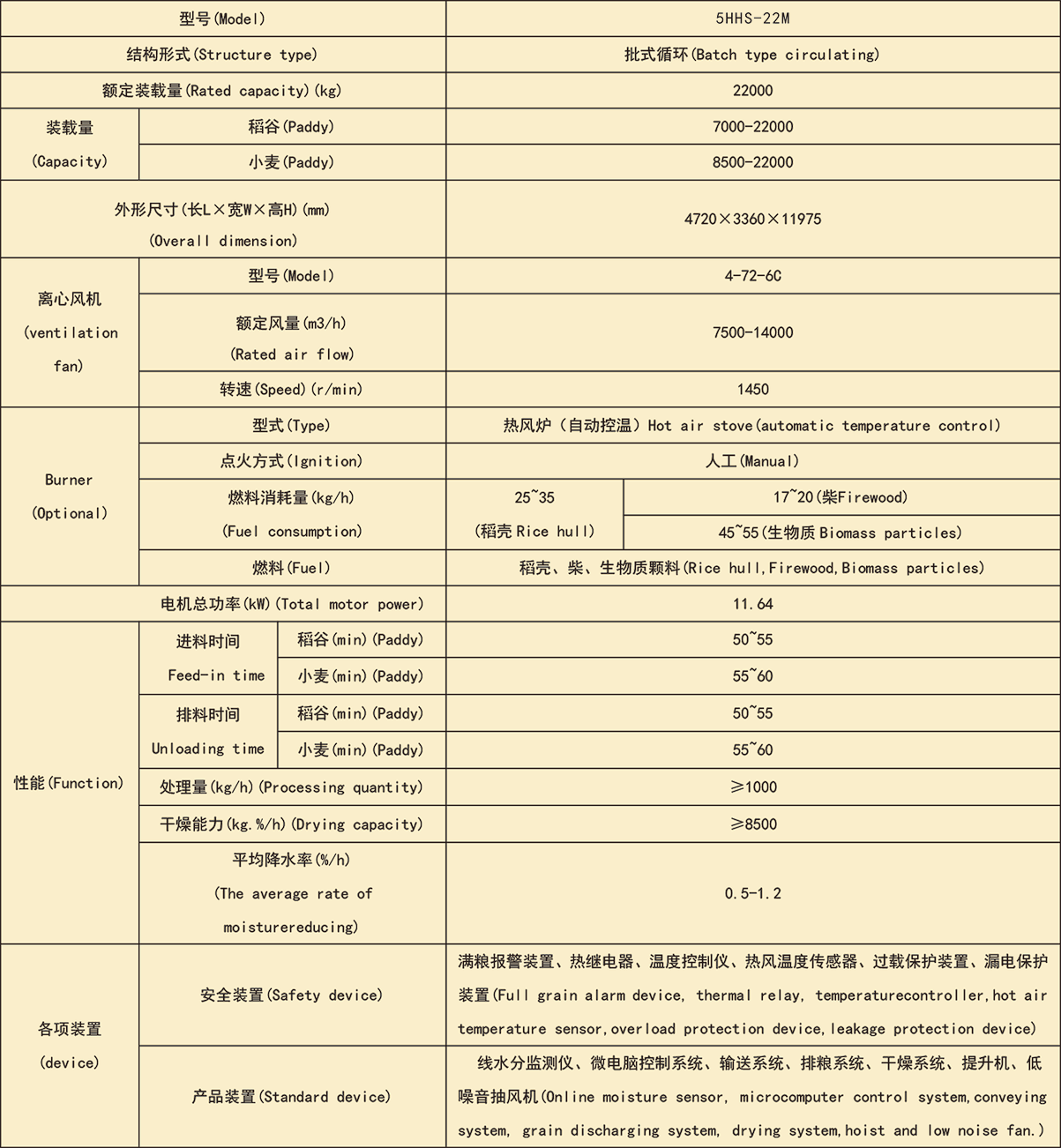

5HHS-22M型低溫谷物干燥機——技術參數

備注：

1、本表所列之性能及降水率為參考數值，稻谷水份是由28%烘至15%；小麥?zhǔn)怯?0%烘至14%為止的數值，實際數值會因外氣溫度、相對濕度、干燥品種、熱風溫度、進風溫度、熱源類型和品質及干前、干后含水率而有所差異。

2、上表中的數據僅供參考，因產品技術不斷改進，本公司更改后恕不另行通知。

1、 he performance and precipitation rate listed in this table are reference values, the water content of rice is reduced from 28%. to 15%, and the value of wheatis from 30%to 14%. The actual value vary according to external gas temperature, relative humility. dry variety, hot air temperature, inlettemperature, type and quality of heat source, and moisture content before and aterdy.

2、Specification is subject to change without prior notice.

5HHS-22M型低溫谷物干燥機——標準配置地基圖

單位 （mm） Unit （mm）

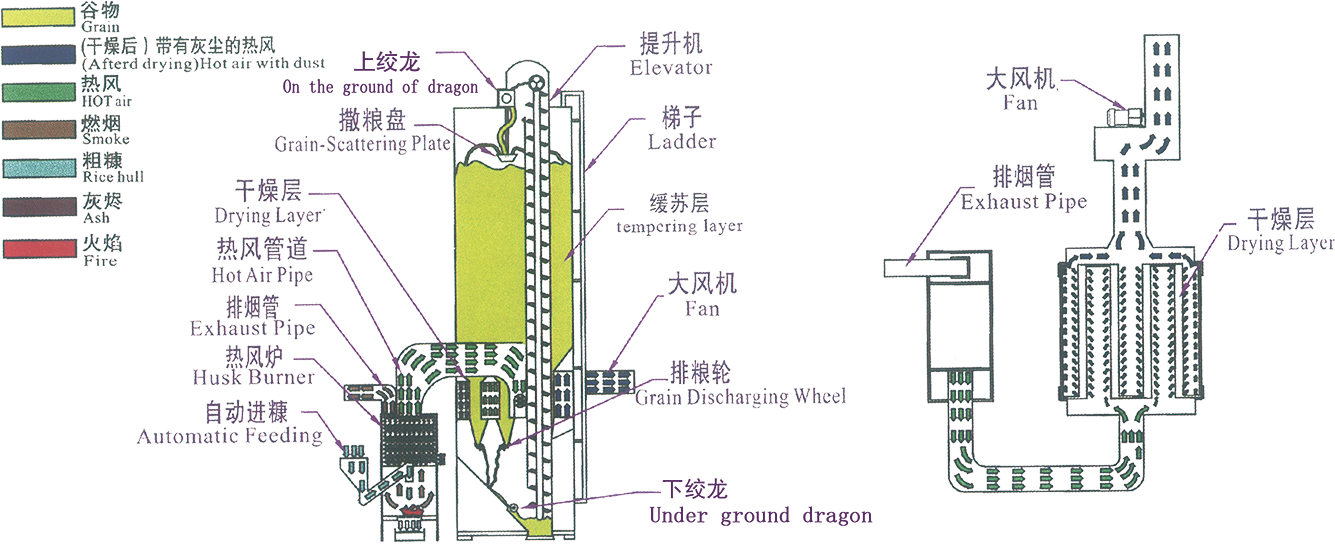

5HHS-22M型低溫谷物干燥機——原理圖

The schematic diagram of 5HHS-30Mtype grain dryer

工作原理

單個批次谷物進入干燥機后，通過電器件的相互配合運行使得谷物在干燥機中進行有序循環，再由熱風爐燃燒燃料產生熱風，在單臺電動風機的作用下，讓熱風通過混流式干燥層的風道，穿透和加熱谷物，通過空氣流動帶走谷物中的水分，帶有水分的廢氣經過風機的吸力通過管道排出機外，干燥的谷物經過自動在線水分儀檢測達到預先設置的水分點后、停機、干燥完成。

Working principle

After a single batch of grain into the drying machine, use the electric parts together running makes grain an orderly circulation in the dryer, again by hot blast stove burning fuel to produce hot air, under the action of a single electric fan, let air by mixed flow drying layer of air duct, penetrate and heating grains, take away moisture from the grain through air flow, The exhaust gas with moisture is discharged from the machine through the suction of the fan through the pipe, and the dry grain is detected by the automatic online moisture meter to reach the preset moisture point, then the machine is stopped and the drying is completed.
